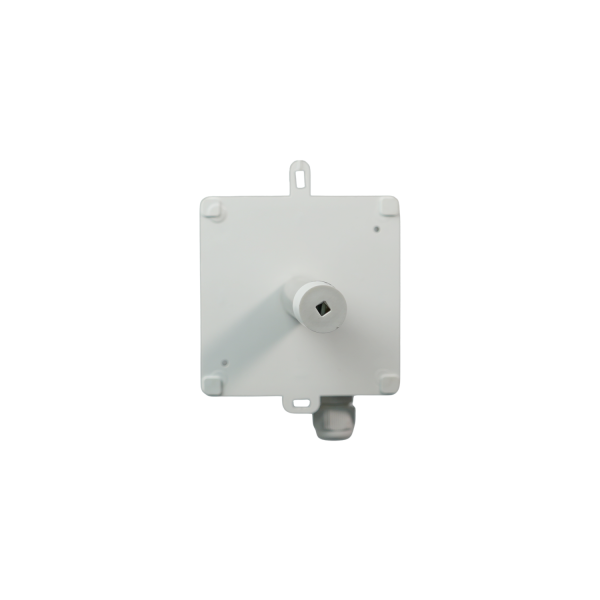

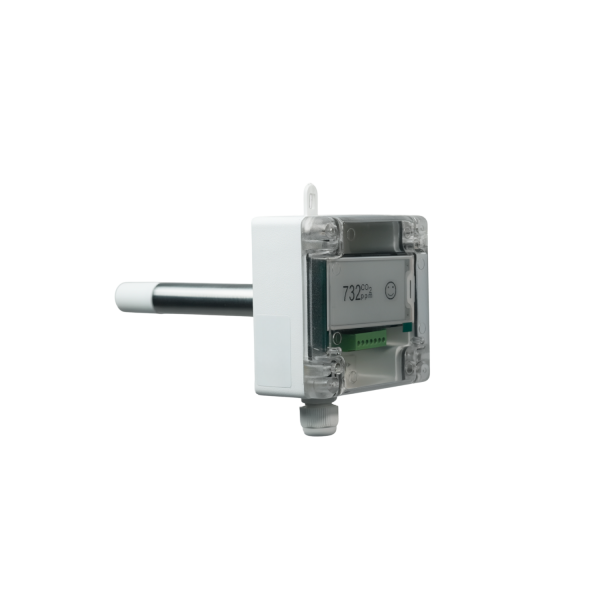

GDI1G.ED

Art.Nr.:: GDI1G.ED
Lagerbestand:: Stück
Power Supply:: AC/DC 24 V (±10 %)
Accuracy:: Accuracy ±(50 ppm +3 % of reading), Repeatability ± 10 ppm, Response time t 63 = 60
Display:: ePaper 31 mm × 60 mm
Active Output:: 4–20 mA
IP Rating:: IP65
Measuring Range:: 0 to 2000 ppm
LED:: available
Immersion Length:: 150 mm

Preisanzeige nur für freigeschaltete Kunden

Beschreibung

The GDI1-Series (CO₂) is designed to measure air quality (CO₂) in air ducts of heating, ventilation and air conditioning systems.
The sensor operates with low voltage power supply.
In accordance with RESET® and WELL Building Standard™.
With Operation LED, optional with ePaper display available.
The sensor outputs are active.

Compatible to all common HVAC DDC and Analog Controls systems, with/without Building Automation System.
Used in all common HVAC applications.
Used in Commercial and Industrial Buildings.

Features

Sensor outputs 0–10 V or 4–20 mA.
Optional with ePaper display available.
Reading/parameter settings via NFC technology.
Cover/buttom housing connected with magnets and 2 screws.
Immersion Pockes in Stainless Steel.
Firmware updates via service connector.
Easy to use, install and maintain.

Download

Download Datasheet GR AP PM DS2220en GDI1 CO2 V26_1
