HPS2G.EI (with Sensor PT1000)

Art.Nr.:: HPS2G.EI
Lagerbestand:: Stück
Power Supply:: AC/DC 24 V(±10 %)
Relay Switching Output:: SPDT Output Switching Load 3 A
Sensor Type:: 4 Electrolytic conductance points
Detection Height:: ~5 mm
Protection:: IP54
LEDs:: Green = No liquid, Red = Liquid detected
Temperature Sensor:: PT1000 Class A
Measuring Connection:: Ø 6 mm pocket with attachable pipe surface contact plate

Preisanzeige nur für freigeschaltete Kunden

Beschreibung

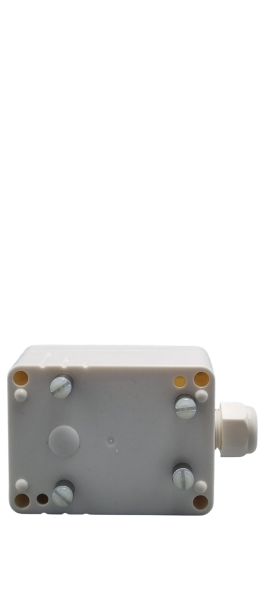

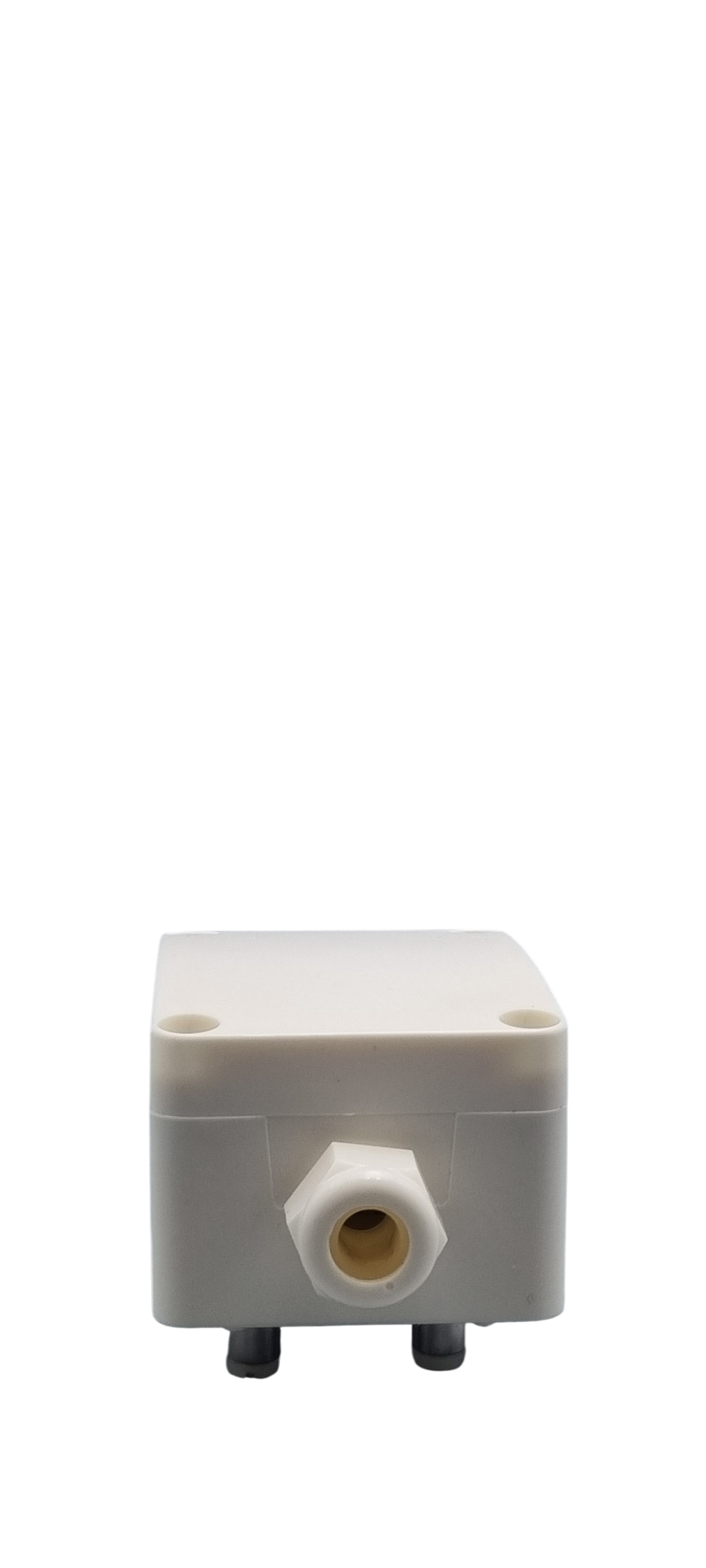

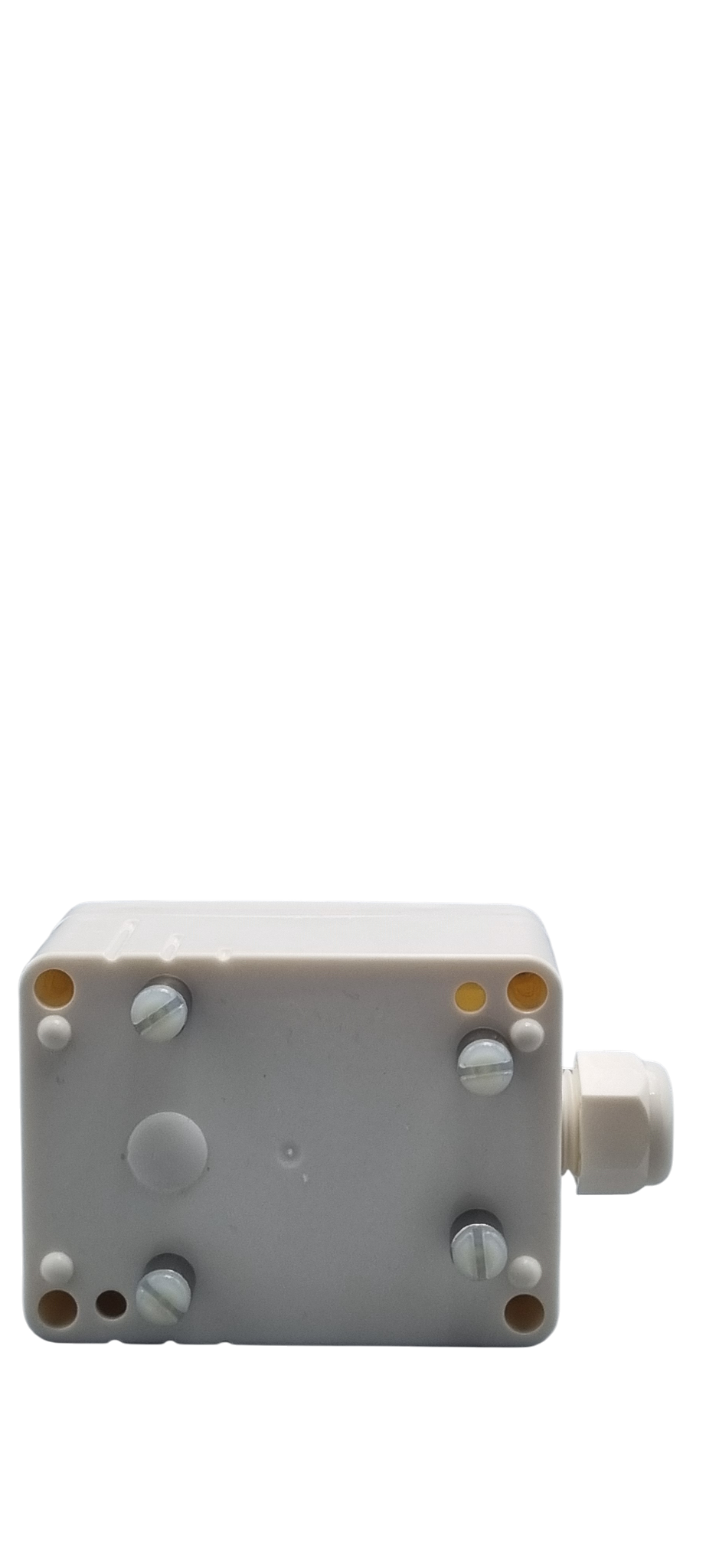

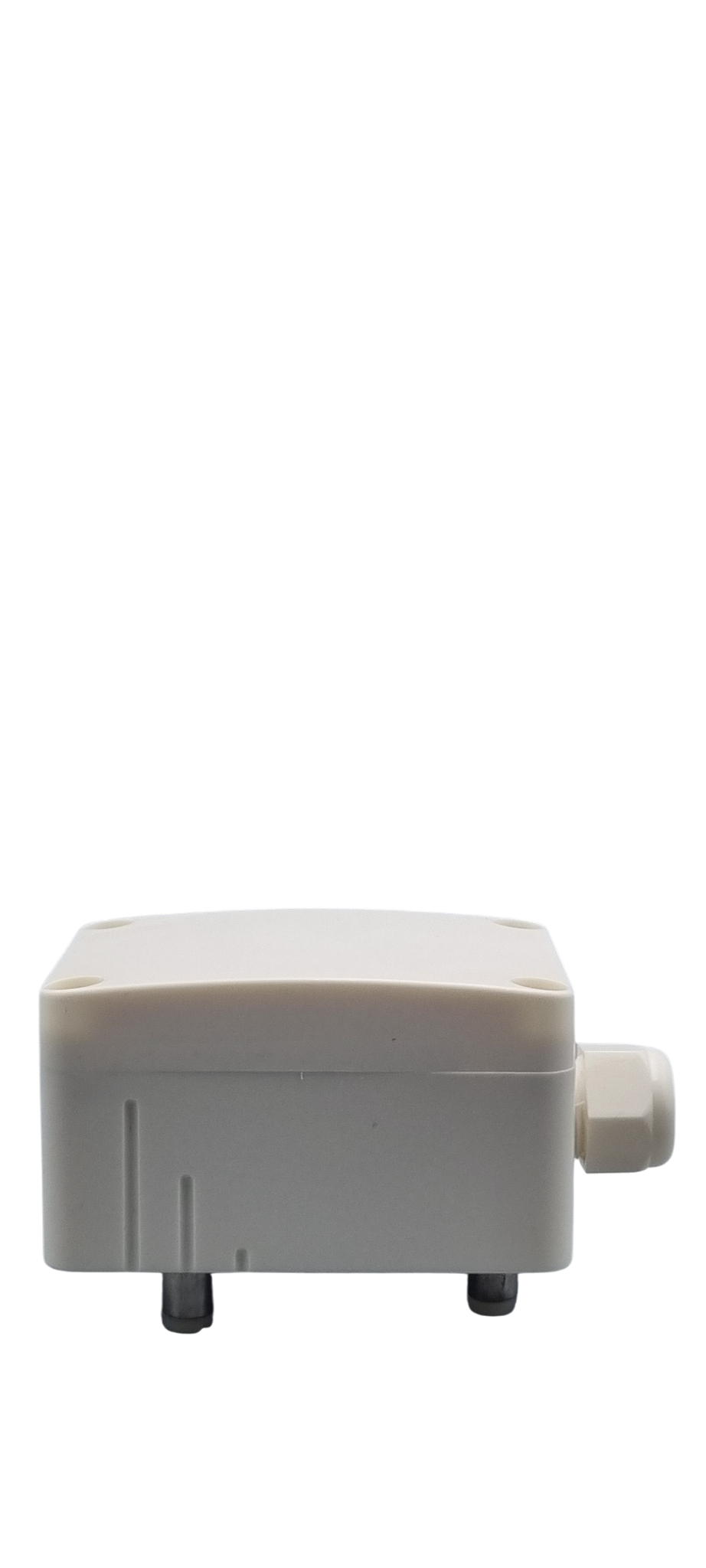

The HPS2-Series (H_lgs) is designed to detect conductive liquid on flat surfaces. The four detection points are located at the bottom of the housing. The surface liquid (Leakage) detection switch has two status LEDs. The surface liquid (Leakage) detection switch operates with low power supply. Optional temperature sensor for universal or pipe-surface applications.
The relay switching outputs are potential free (SPDT)

Compatible to all common HVAC DDC and Analog Controls systems, with/without Building Automation System.
Used in all common HVAC applications.
Used in Commercial and Industrial Buildings.

Features

Low voltage, relay switching output.

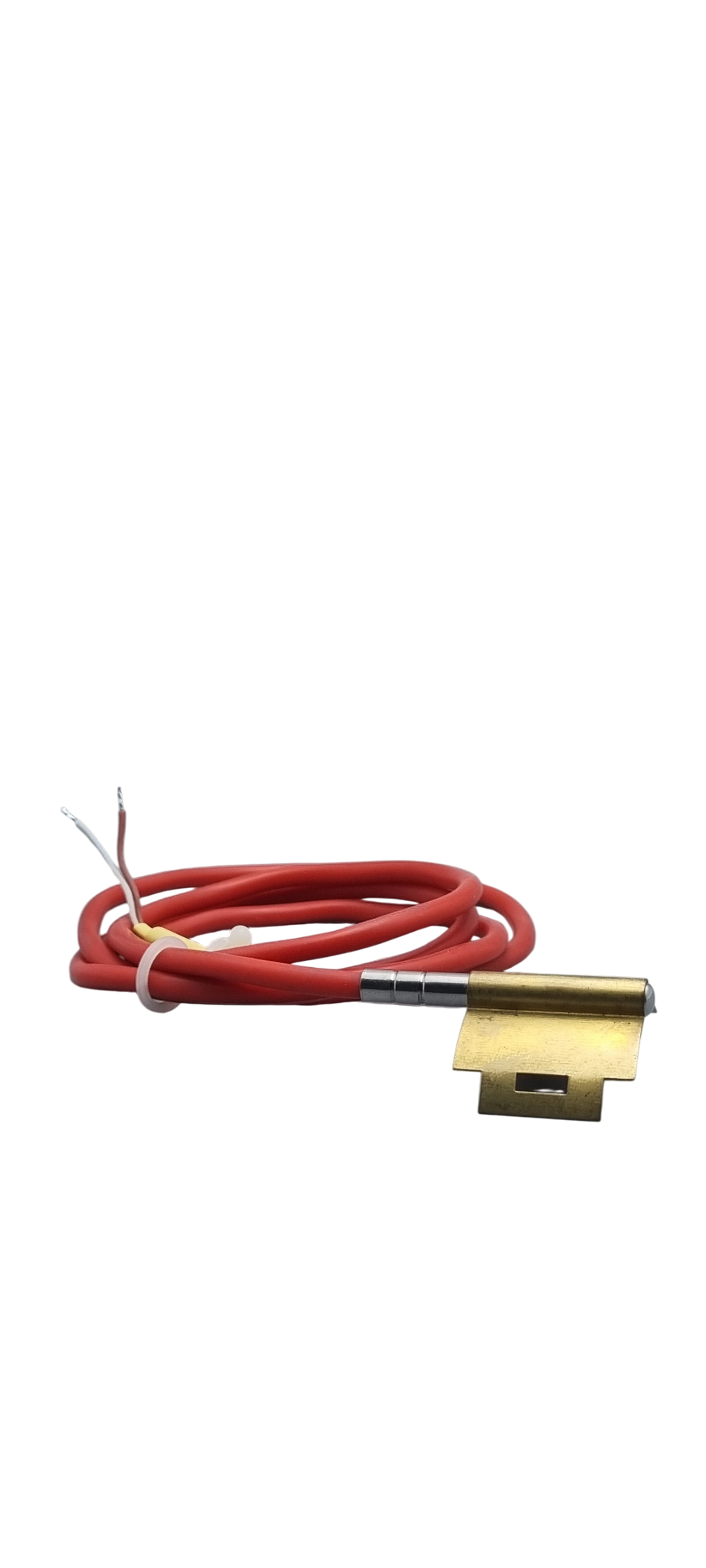

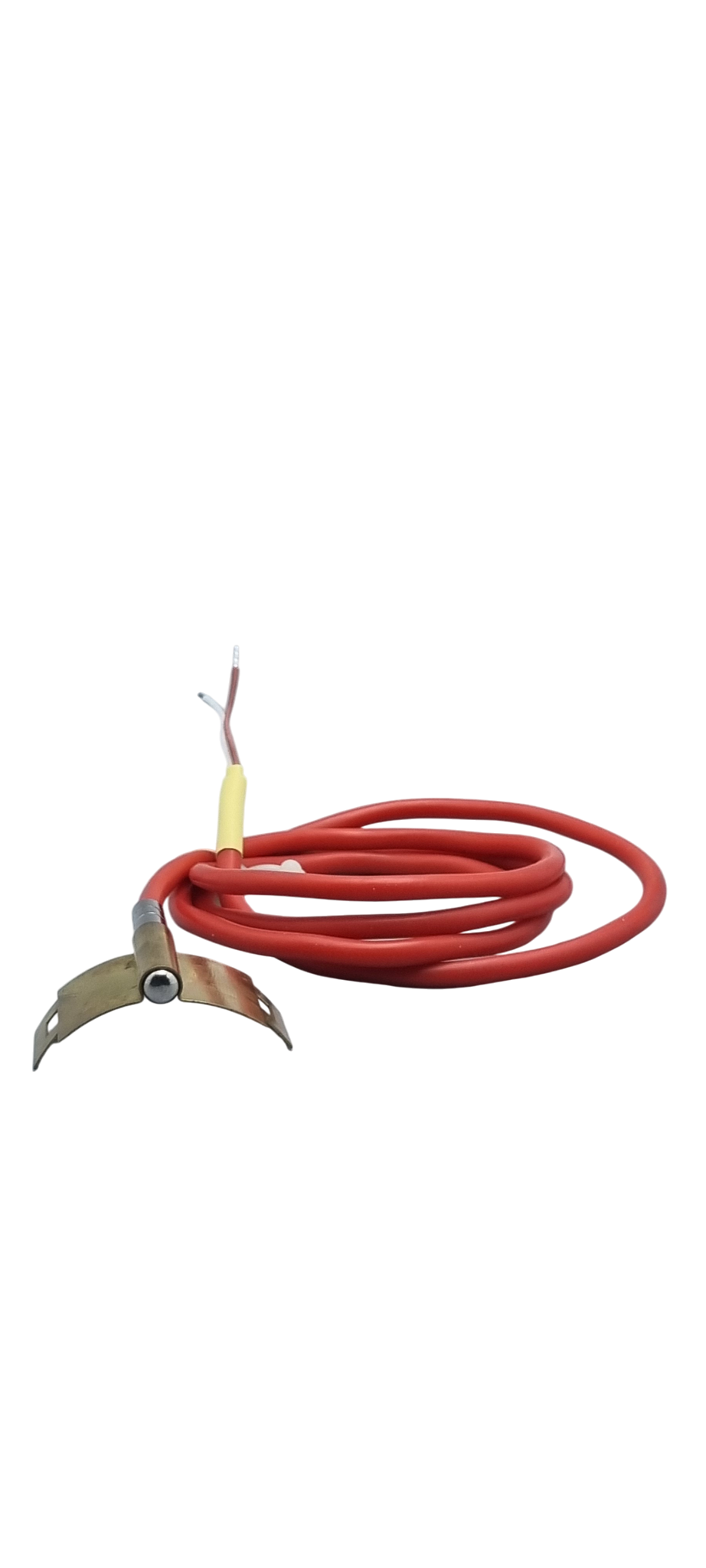

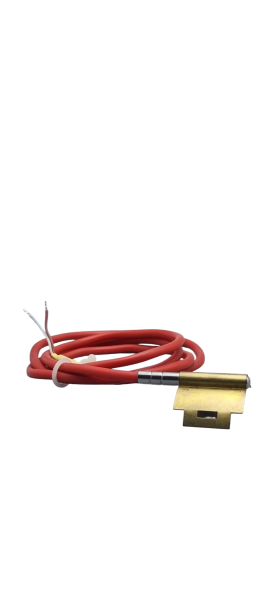

Passive Temperature sensor with Ø 6 mm pocket and attachable contact plate for pipe surface.
LEDs for status detection.
Status LEDs can be enabled / disabled.
Detection of conductive water or similar liquids.
Calibration potentiometer for the measuring sensitivity.
Professional, practical design – withstands harsh environmental conditions.

Datasheet

Download Datasheet GR AP PM DS1362en HPS2 H_lg_s V26_1
