Art.Nr.:
UEA0G.F
Protection:
IP20
Primary Power Supply:
AC 230 V (−15 % to +10 %)
Primary ON/OFF Switch:
ON/OFF Switch
Primary Fuse:
Self-resetting (PTC)
Secondary Outputs:
AC 24 V (±10 %); 30 VA, on 1 output or distributed over all 3 outputs
Secondary Fuse:
Auto Shutdown
Secondary LED:
Green = Normal operation, Off = No power on outputs
Mounting:
DIN Rail or Wall mounteing
Preisanzeige nur für freigeschaltete Kunden

Beschreibung

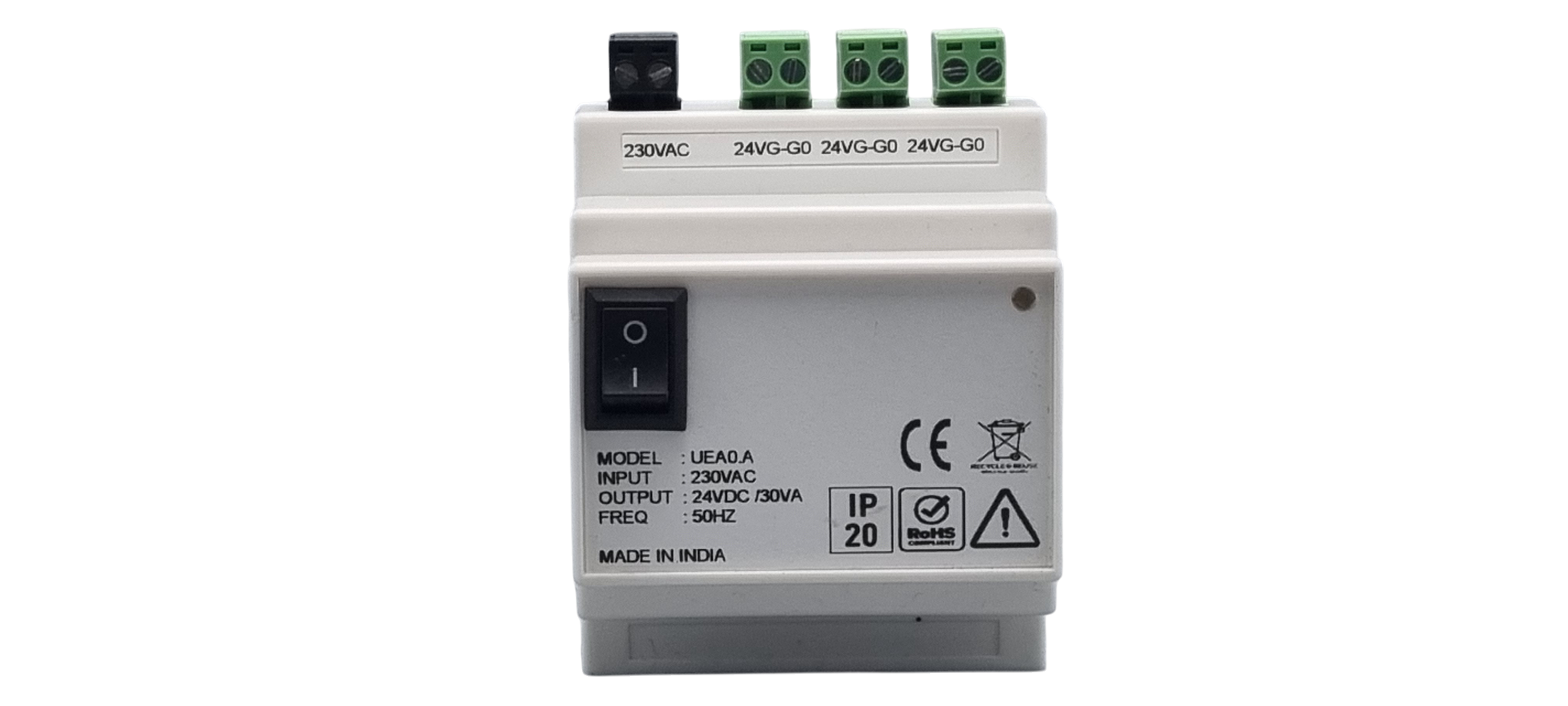

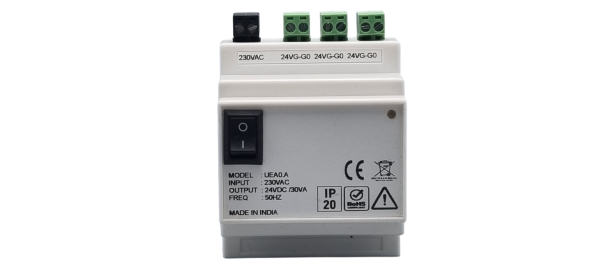

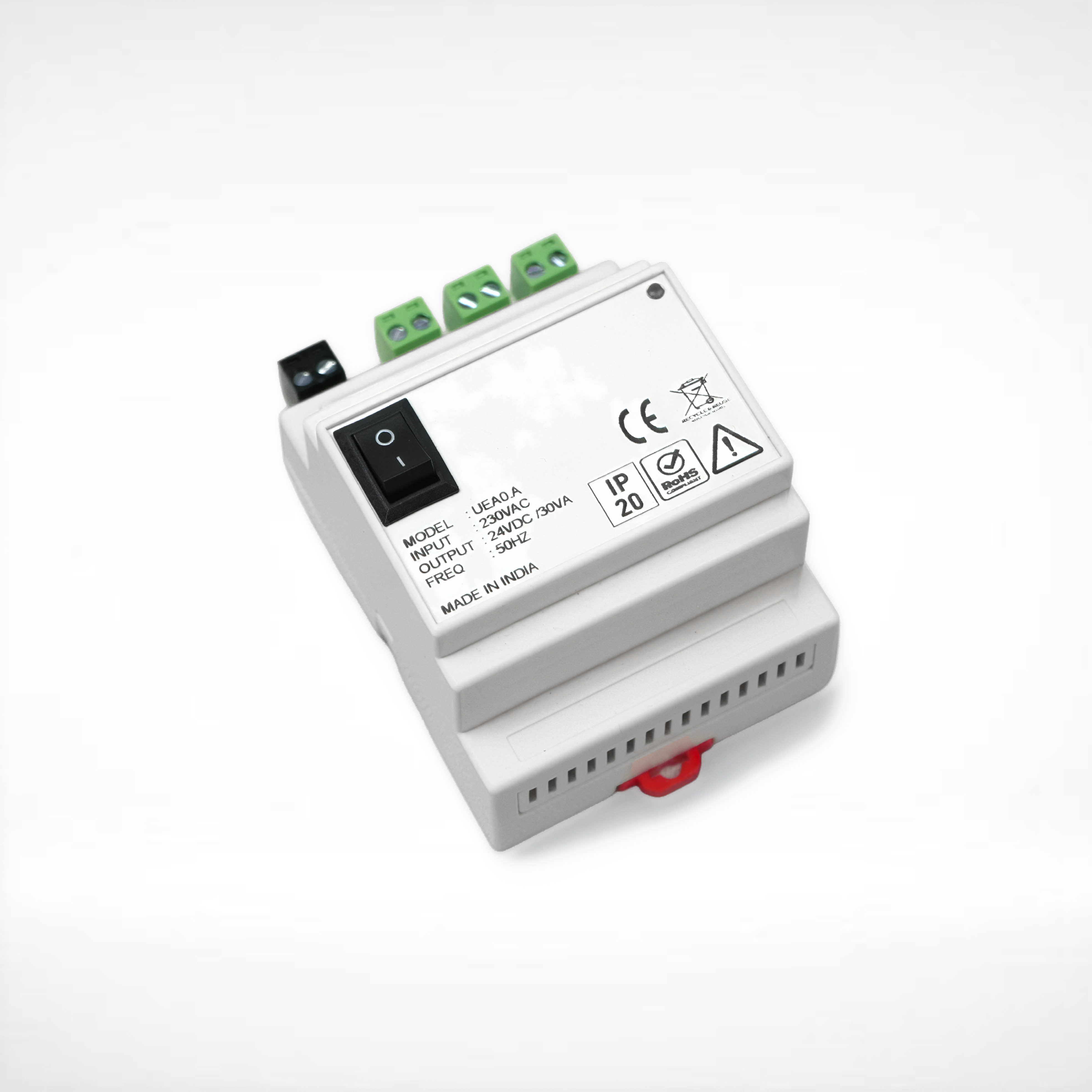

The Tranformer (UEA0-Series) is designed to tranforms line voltage (AC 230 V) into SELV Voltage (AC 24 V). The Transformer has a internal self-resetting primary and secondary fuse. The Transformer has secondary power supply ON/OFF switch. The Transformer has a visual operational mode LED for the secondary power supply. Available with18 VA / 0.75 A or 30 VA / 1.25 A.

Use
The Tranformer is designed to tranform line voltage (AC 230 V) into SELV Voltage (AC 24 V).
Compatible with all common HVAC devices with a power supply of SELV AC 24 V.
Designed for constant load / Protected against short circuit and overload.
Suitable for DIN Rail mounting.
Used in Commercial and Industrial Buildings.
Features
Three Power Outputs, total load on 1 output or distributed over all 3 outputs.
The Transformer has a internal self resetting primary fuse.
The Transformer has a secondary power supply ON/OFF.
The Transformer has a visual operational mode LED for the secondary power supply.
The Transformer has easy to connect push-down terminals.
Professional and practical product design, withstands rough environmental conditions.
Easy to use, install and maintain.
Download
Download Datasheet GR AP DS UEA0.E_F 2026 V1
