HPS2G.GA

Name: HPS2G.GA
SKU: HPS2G.GA

Art.Nr.:: HPS2G.GA
Lagerbestand:: Stück
Power Supply:: AC/DC 24 V (±10 %)
Relay Switching Output:: SPDT Output Switching Load 3 A
Sensor Type:: Electrolytic conductance
Protection:: IP54
LEDs:: Green = no liquidRed = liquid detected
Measuring Connection:: 5 m active measuring rod
Measured:: Conductive water or similar liquids

Preisanzeige nur für freigeschaltete Kunden

Beschreibung

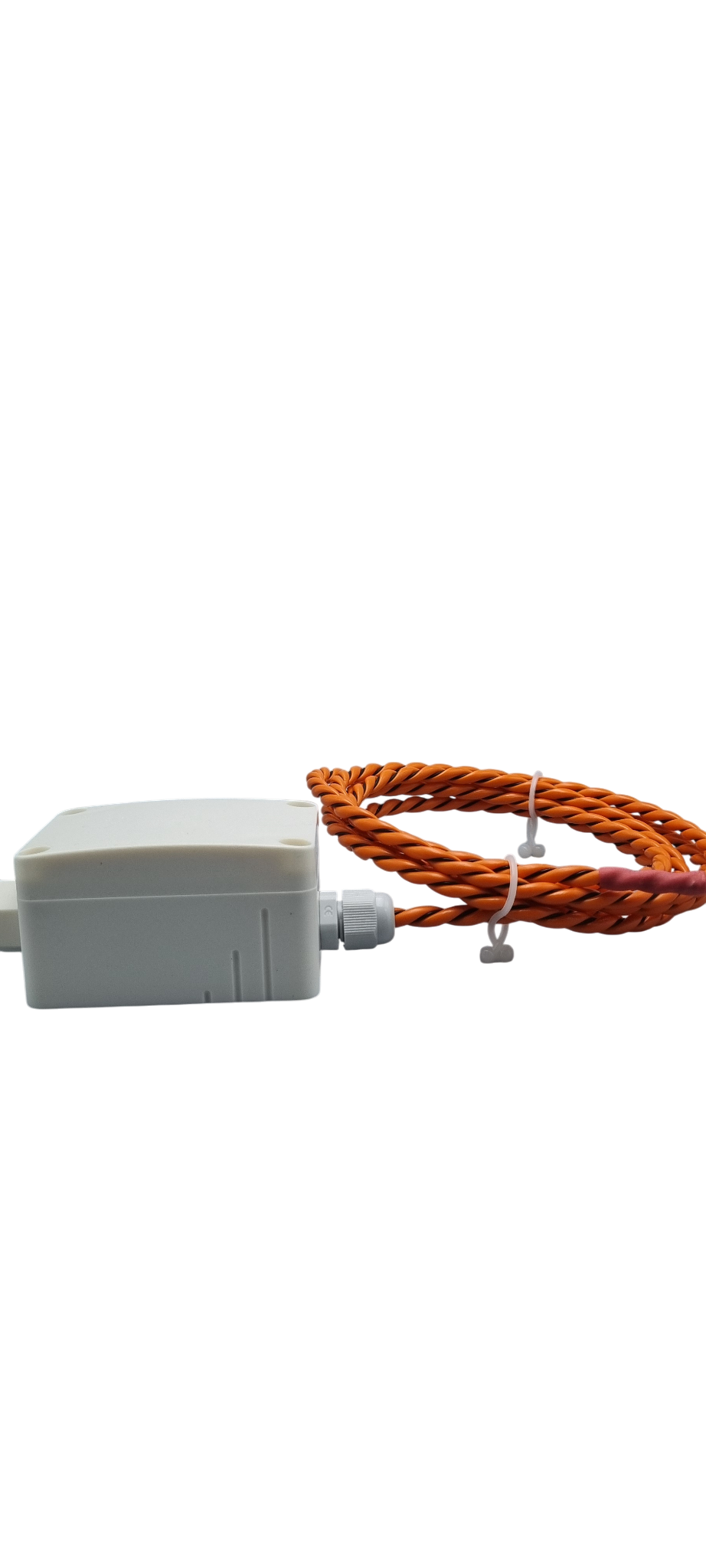

The HPS2-Series (H_lgc) is designed to detect conductive liquid on flat surfaces. The leakage detection is with active detection over the full lengths of the rod. The surface liquid (Leakage) detection switch has two Status LEDs. The surface liquid (Leakage) detection switch operates with lower power supply. The relay switching outputs are potential free (SPDT).

Use

Compatible to all common HVAC DDC and Analog Controls systems, with/without Building Automation System.

Used in all common HVAC applications.

Used in Commercial and Industrial Buildings.

Features

Low voltage, relay switching output.
The leakage detection is with active detection over the full lengths of the rod.
LEDs for Status Detection.
Status LEDs can be enabled / disabled.
Detection of conductive water or similar liquids.
Calibration potentiometer for the measuring sensitivity.
Professional, practical design – withstands harsh environmental conditions.
Easy to use, install and maintain.

Download

Download Datasheet GR AP PM DS1364en HPS2 H_lgc V26_1
